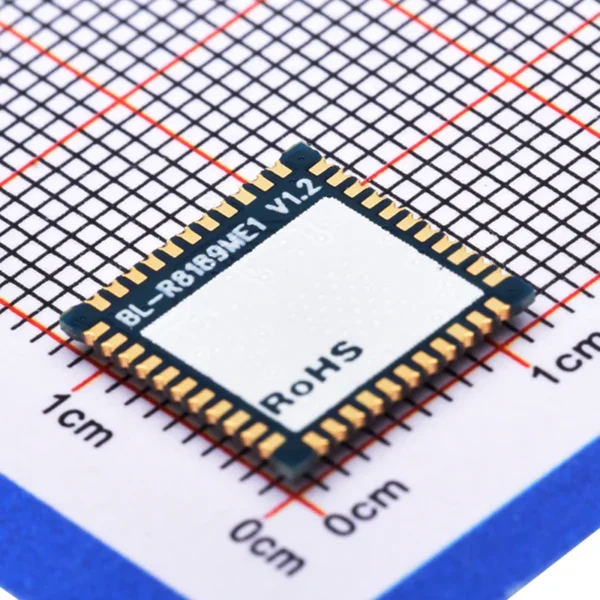

BL-R8189ME1 (ETV)
186,220تومان
- Operating Frequencies: 2.4~2.4835GHz
Host Interface is SDIO 3.0 - IEEE Standards: IEEE 802.11b/g/n
- Wireless PHY rate can reach up to 150Mbps
- Connect to external antenna through half hole pad
- SDIO and Digital I/O
- توضیحات
- توضیحات تکمیلی
- نظرات (0)
توضیحات
ماژول وای فای با پشتیبانی از سرعت 150Mbps
BL-R8189ME1 is a highly integrated 1T1R Single-band WLAN module. It compatible IEEE 802.11 b/g/n standard and provides the maximum PHY rate up to 150Mbps ,offering feature-rich wireless connectivity at high standards,and delivering reliable, giving end users the greatest performance .
توضیحات تکمیلی
| Chipset | RTL8189ETV |
|---|---|
| WLAN Standards | IEEE802.11b/g/n/, 1T1R, 2.4GHz, 150Mbps (Max) |
| Host Interface | SDIO 3.0 |
| Antenna | Connect to the external antenna through half hole pad |
| Dimension | SMD 44Pins, 12*12*1.5mm (L*W*H) |
| Power Supply | DC 3.3V±0.2V @ 700 mA (Main power), DC 3.3V±0.2V or 1.8V±0.1V(VDDIO power) |
| Operation Temperature | -20℃ to +70℃ |
| Operation Humidity | 10% to 95% RH (Non-Condensing) |
