HC-1.25-5AW
12,400تومان
- 1x5P 5P PicoBlade(MX 1.25) Tin 5 -25℃~+85℃ 1A 1 1.25mm Brass Bend-in Push-Pull,P=1.25mm Wire To Board Connector ROHS
- توضیحات
- توضیحات تکمیلی
- دانلود
- نظرات (0)
توضیحات

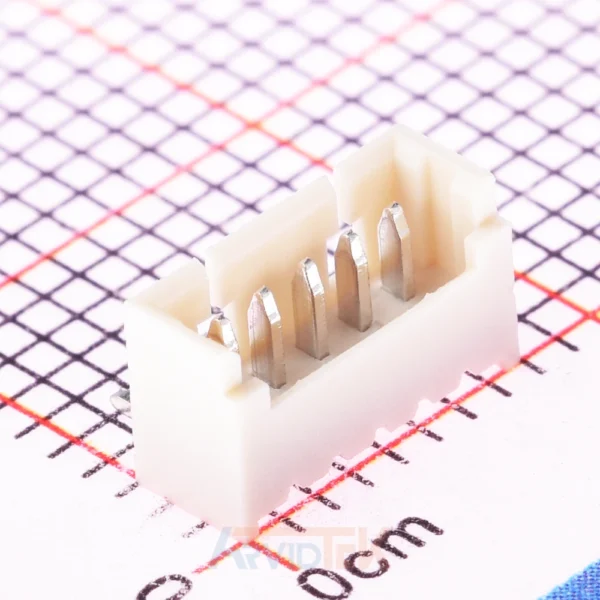

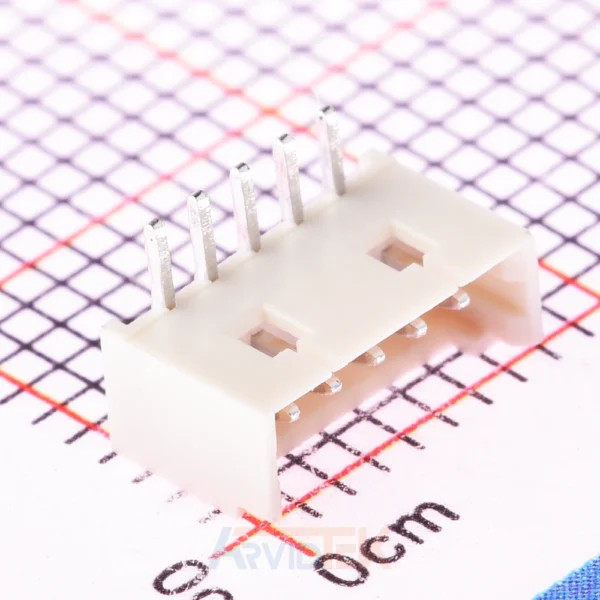

کانکتور HC-1.25-5AW با ابعاد 1x5P 5P PicoBlade(MX 1.25) Tin 5 Pin
توضیحات تکمیلی
| Category | Connectors/Wire To Board Connector |
|---|---|
| Manufacturer | HCTL |
| Package | Push-Pull,P=1.25mm |
| Y-Width of Bottom Edge on Board | 4.7mm |
| Pins Structure | 1x5P |
| Number of Pins | 5P |
| Reference Series | PicoBlade(MX 1.25) |
| Contact Plating | Tin |
| Row Spacing | – |
| Number of PINs Per Row | 5 |
| Operating Temperature | -25℃~+85℃ |
| Current Rating | 1A |
| Plastic Material | PA46 |
| Color | – |
| Supplementary Features | – |
| Number of Rows | 1 |
| Flame Retardant Rating | UL94V-0 |
| Pitch | 1.25mm |
| Voltage Rating | 125V |
| Contact Material | Brass |
| X-Length of Bottom Edge on Board (Spacing Line) | 8mm |
| Z-Height of the Board | 3.2mm |
| Mounting Type | Bend-in |
2312191821_HCTL-HC-1-25-5AW_C2845538.pdf
(pdf, 461KB)
datasheet
