برد توسعه Seeed Studio XIAO ESP32-S3 Sense
5,876,500تومان

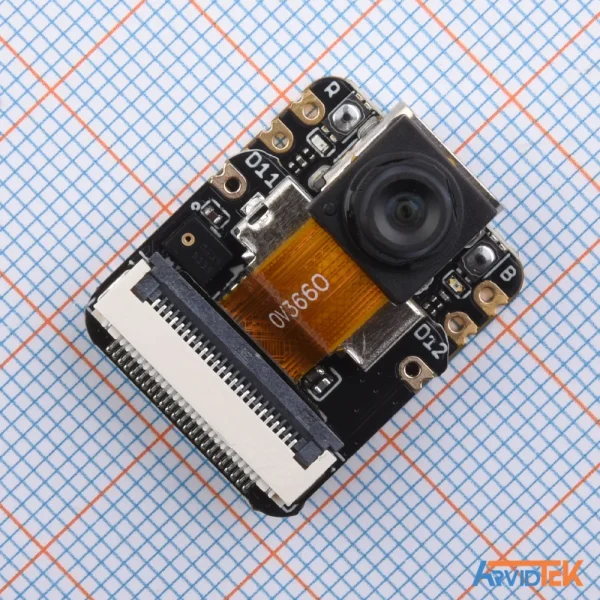

برد فشرده XIAO ESP32-S3 Sense مجهز به دوربین OV3660، میکروفون و Wi-Fi/BLE
Compact XIAO ESP32-S3 Sense board with OV3660 camera, mic, and Wi-Fi/BLE
| +1 | 5,876,500تومان |
| +10 | 5,770,723تومان |
| +100 | 5,664,946تومان |
- توضیحات تکمیلی
- نظرات (0)
توضیحات تکمیلی
| Processor | ESP32-S3R8 (Xtensa LX7 dual-core, 32-bit processor that operates at up to 240 MHZ) |
|---|---|
| Wireless | Complete 2.4GHz Wi-Fi subsystem, Bluetooth Low Energy 5.0 / Bluetooth Mesh |
| Built-in Sensors | 1x OV3660 camera sensor, 1x Digital Microphone |
| Memory | On-chip 8MB PSRAM & 8MB Flash, Onboard SD Card Slot, supporting 32GB FAT |
| Interface | 1x UART, 1x IIC, 1x IIS, 1x SPI, 11x GPIOs (PWM), 9x ADC, 1x User LED, 1x Charge LED, 1x B2B Connector (with 2 additional GPIOs), 1x Reset button, 1x Boot button |
| Dimensions | 21 x 17.8 x 15mm (with expansion board) |
| Input Voltage | Input voltage (Type-C): 5V, Input voltage (BAT): 3.7V |
| Circuit Operating Voltage | Type-C: 5V @ 38.3mA, BAT: 3.8V @ 43.2mA (with expansion board) |
| Power (Webcam Web Application) | Type-C: Average power Consumption: 5V/~140mA, Peak power consumption (Image Capture): 5V/~347mA |
| Power (Microphone Recording & SD Card Writing) | Battery: Average power Consumption: 3.8V/~155mA, Peak power consumption (Image Capture): 3.8V/~366mA Type-C: Average power consumption: 5V/54.58mA, Peak power consumption: 5V/86.7mA Battery: Average power consumption: 3.8V/64.5mA, Peak power consumption: 3.8V/109.3mA |
| Charge Current | 50mA (Fast) / 3.8mA (Trickle) |
| Low Power Consumption Model (Supply Power: 3.8V) | Modem-sleep Mode: 44mA, Light-sleep Mode: 5mA, Deep Sleep Mode: 3mA |
| Wi-Fi Enabled Power Consumption | Active Mode: 110 mA (with expansion board) |
| BLE Enabled Power Consumption | Active Mode: 102 mA (with expansion board) |
| Working Temperature | -20°C ~ 65°C |
